LINNHOFF TSD MOBILEMIX

Asphalt Mobile Plants

The Linnhoff TSD MobileMix Asphalt Batch Mix Plant series features mobility with ease of installation, enabling the bitumen mixing plants to be frequently relocated to different job sites.

Request Quote View Specifications

About Linnhoff TSD Mobilemix

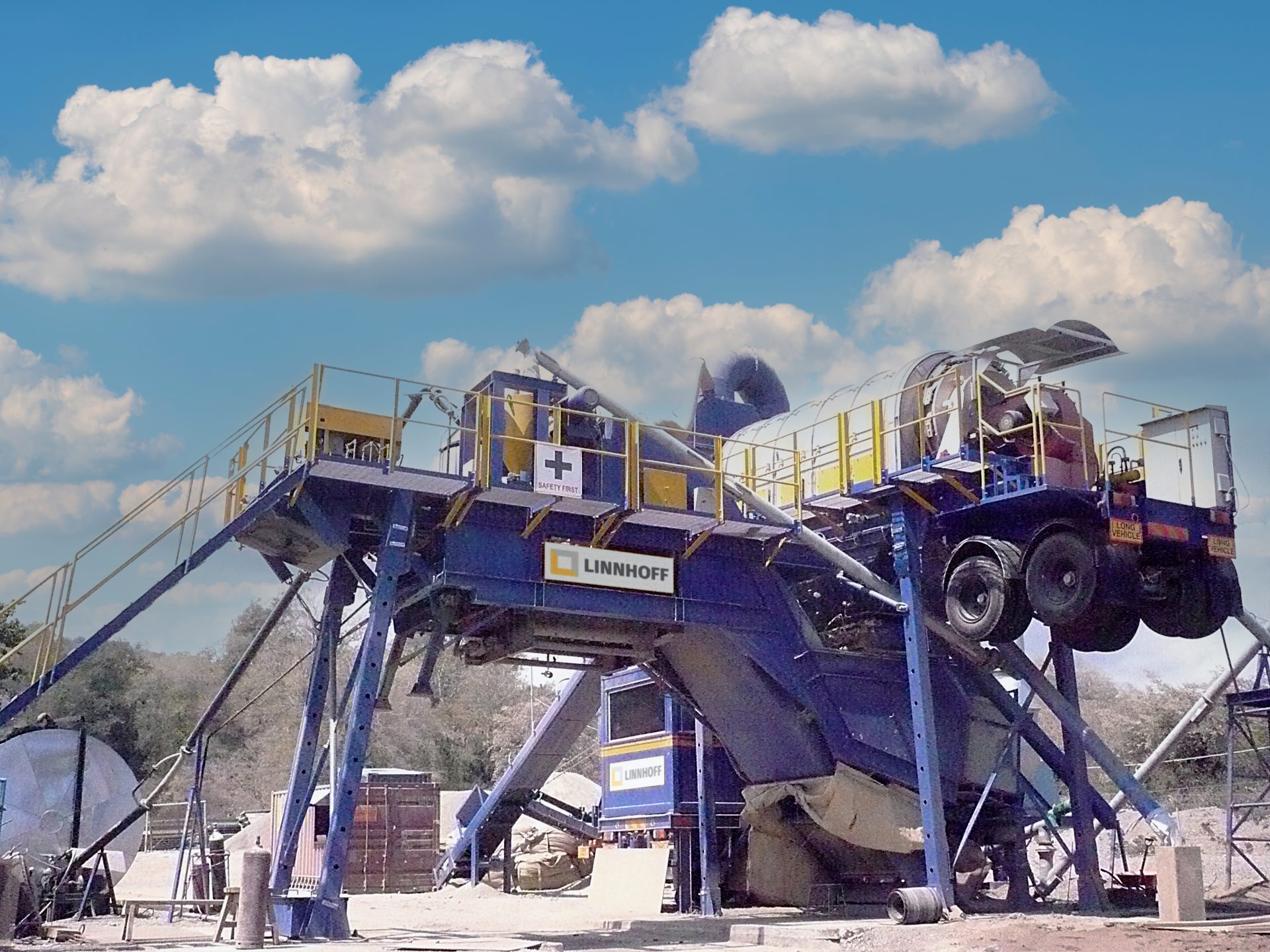

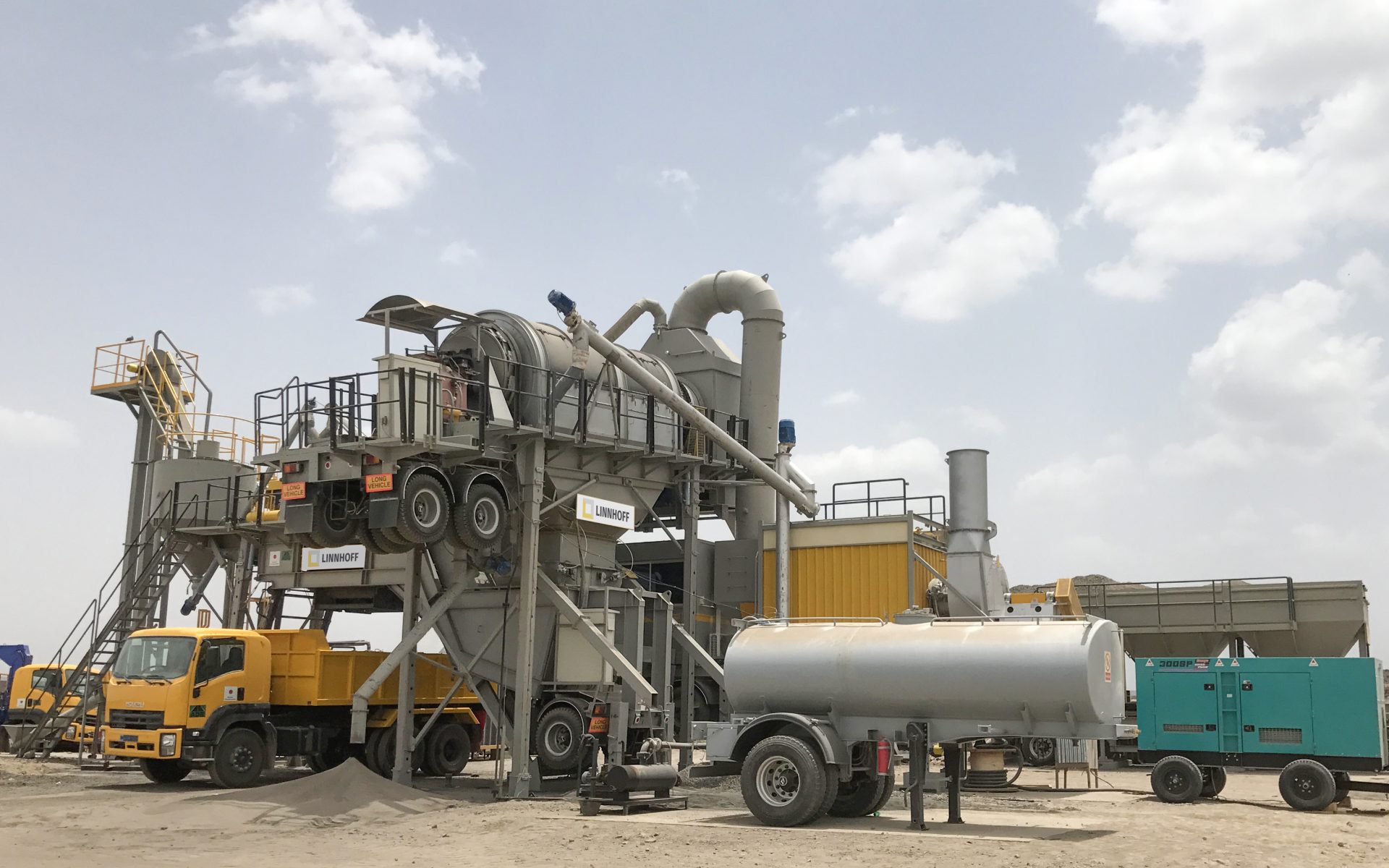

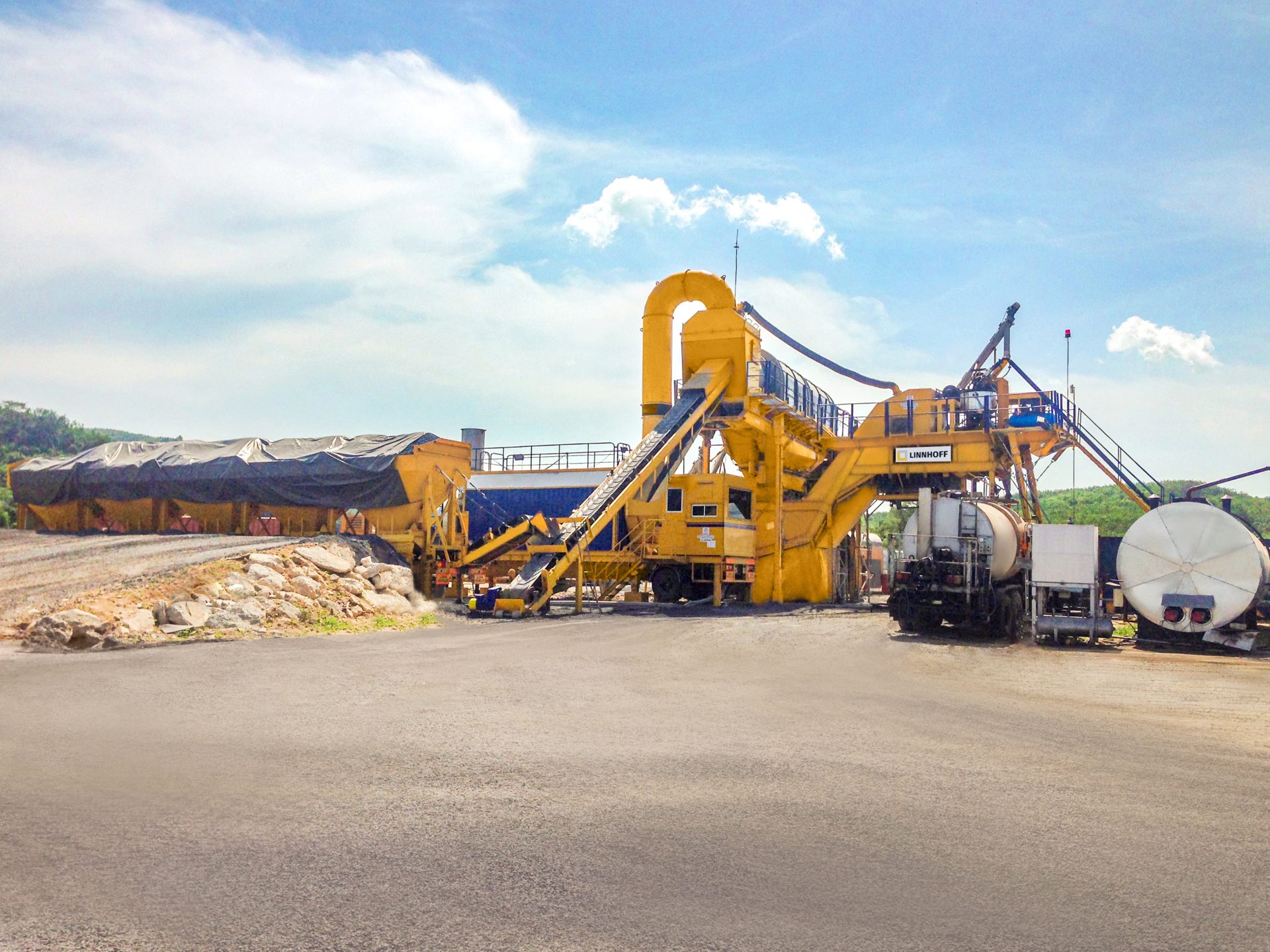

The Linnhoff TSD MobileMix Asphalt Batch Mix Plant series features mobility with ease of installation, enabling the bitumen mixing plants to be frequently relocated to different job sites. These hot mix asphalt plants are suitable for short-term projects or projects in remote locations. It is designed to maximise the plug-and-play convenience whilst minimising the time spent on mobilisation and demobilisation, with no heavy cranes and heavy-concrete foundations required for its setup.

Add to Enquiry Download Brochure

Features & Benefits

Fully Integrated Mobile Modules

Four main mobile modules with built-in chassis designed to conform to international land transportation requirements.

Energy Savings

Double screening drum technology reduces overall operating costs from less maintenance and fuel consumption.

Fast Setup & Dismantling

No heavy cranes and heavy-concrete foundations required. Quick mobilisation and demobilisation.

Plug & Play Convenience

Prewired with quick couple cables and rigorously tested prior to shipment.

Environmentally Friendly

Pollution control unit with ambient-air cleaning system ensures clean air is released into the atmosphere.

Reliable Performance

Batch mixing system for quality hot mix asphalt with cutting-edge technology.

Mobile Modules

Mobile Cold Feeder Module

Inclusive of built-in retaining wall to reduce the need for ramp's concrete wall.
Feeder belts are equipped with shaft-mounted inverter-controlled motor for better feeding accuracy.
Sand hopper is equipped with a vibrator.

Mobile Screen Drum Module

Unique dual function double screening drum system combining drying and screening of aggregates in a single drum.
The screens are configured for easy replacement.
Hot Mineral Bins are located directly below the drum to maximise the conductive heat from the Screen Drum and Main Burner.

Mobile Weighing & Mixing Module

Individual weigher with load cells for aggregates, filler, and bitumen.
Robust twin-shaft mixer equipped with synchronised spur gear and specially designed mixer arms and paddles.

Mobile Baghouse & Control Cabin Module

Baghouse filter unit utilising the ambient-air cleaning system.
Recuperated filler hopper collects filtered dust particles to be recycled.
Control cabin is insulated and dust-proof. Automated PLC system with manual override.

Technical Specifications

Model	TSD1000	TSD1500	TSD2000
Capacity	40 – 60 tph	100 – 120 tph	120 – 140 tph
Batch Size	1150 kg	1500 kg	2000 kg

*Capacity as per standard plant performance based on 3% moisture content. Specifications are subject to technical modifications.
