ASPHALT MIXING PLANTS
Asphalt Mixing Plants
SOLID MIX delivers advanced asphalt solutions - batch or continuous - for global infrastructure projects with superior quality and reliable performance.
SOLID MIX delivers advanced asphalt solutions - batch or continuous - for global infrastructure projects with superior quality and reliable performance.

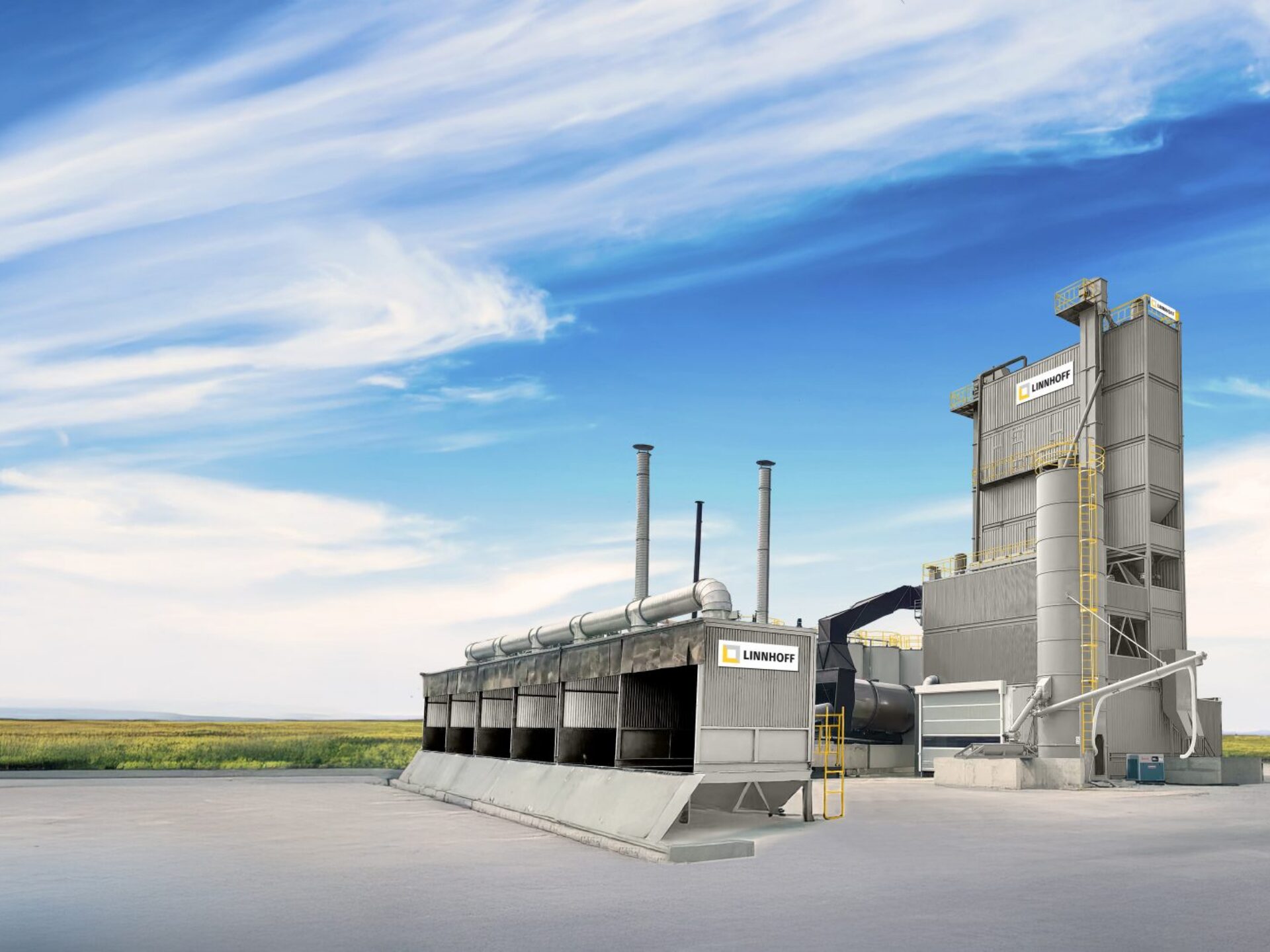

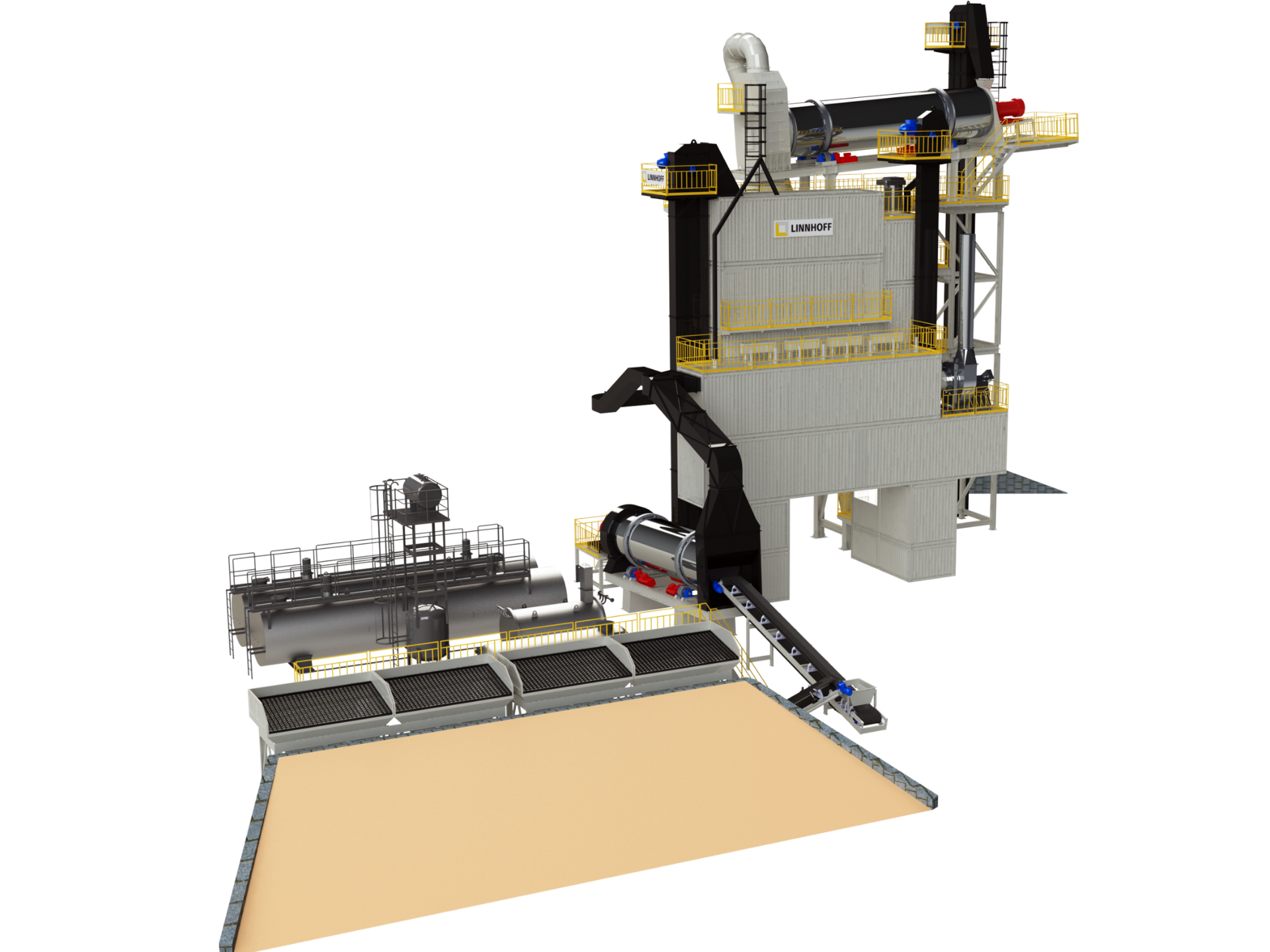

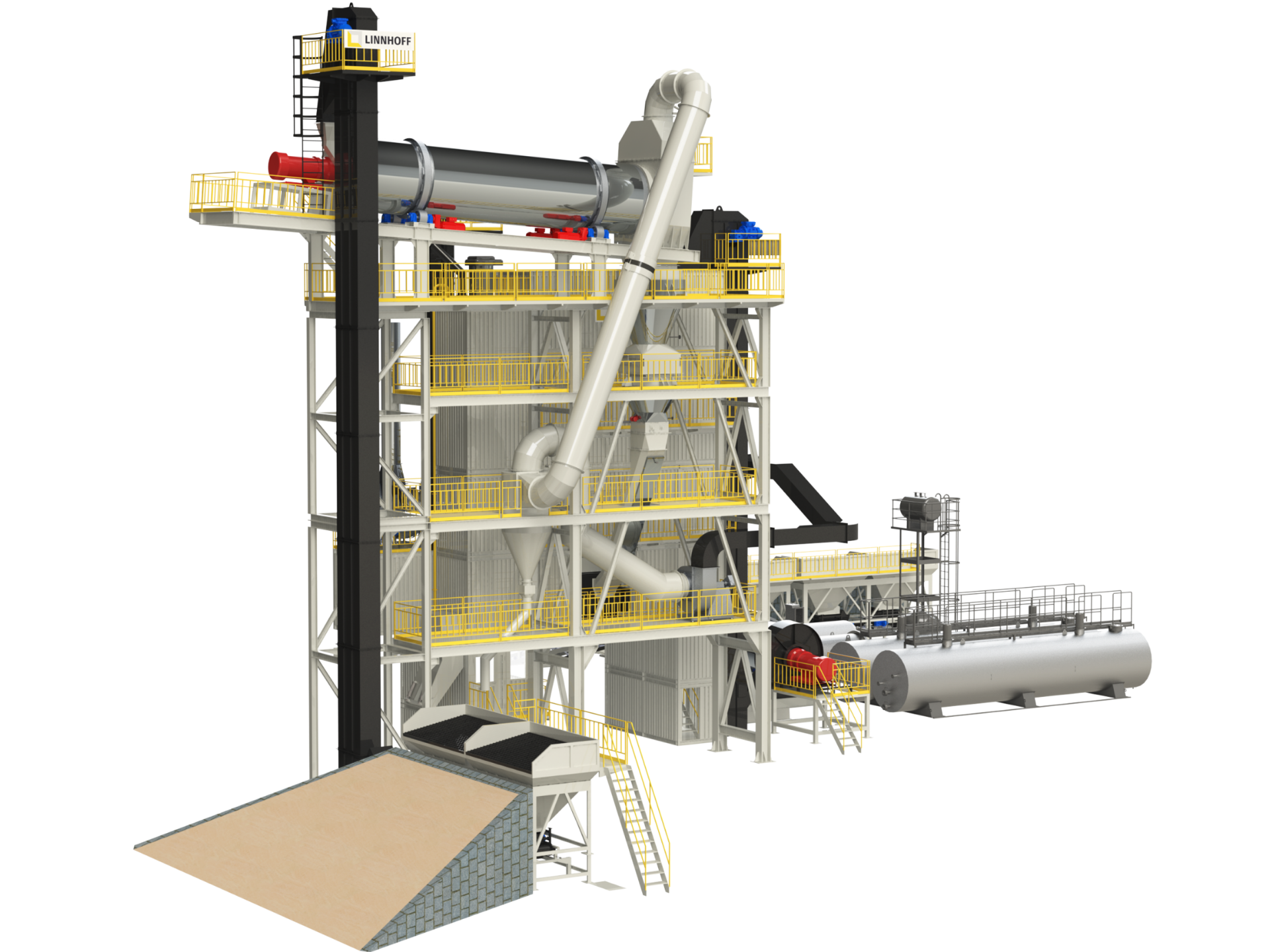

Linnhoff NVX NovaMax asphalt plants are your go-to for efficient asphalt mixing with hot elevators and vibrating screens. Enjoy quick setup, compact footprint, economical shipping, robust protection, and eco-friendly solutions—all perfect for budget-friendly paving projects!
Linnhoff NVX are configured in modules for easy and economical shipping in sea containers.
The complete structure offers swift modularised setup and dismantling on site, reducing installation time and labour costs.
Complete with vibrating screens for accurate grading and weighing systems equipped with load cells for aggregates, filler, and bitumen.
Pollution control unit filters exhaust gas and dust to ensure clean air is released into the atmosphere.
Fully automated PLC system to monitor the whole operation from the control cabin with remote troubleshooting via Internet.
Designed with high-quality materials and components to reduce wear-and-tear with cutting-edge technology.
| Model | NVX1510 | NVX2010 |
|---|---|---|
| Capacity | 90 – 120 tph | 140 – 160 tph |
| Number of Hoppers | 4 bins | 5 bins |
| Number of Screening Decks | 4 decks | 5 decks |
| Type of Fuel | Diesel / Heavy Oil / Gas | |
| Mixer Capacity | 1500 kg | 2000 kg |
*Capacity as per standard plant performance based on 3% moisture content. Specifications are subject to technical modifications.

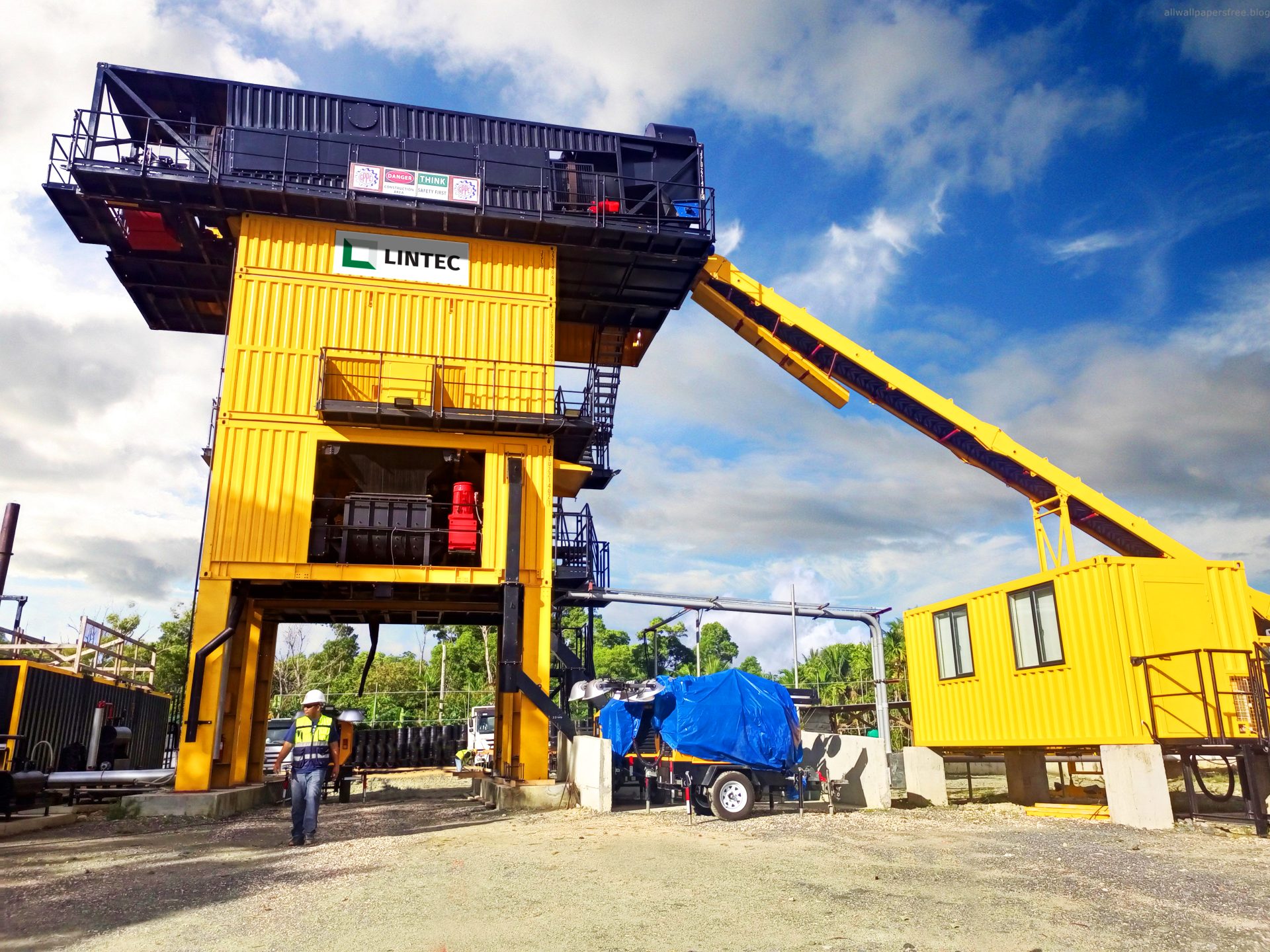

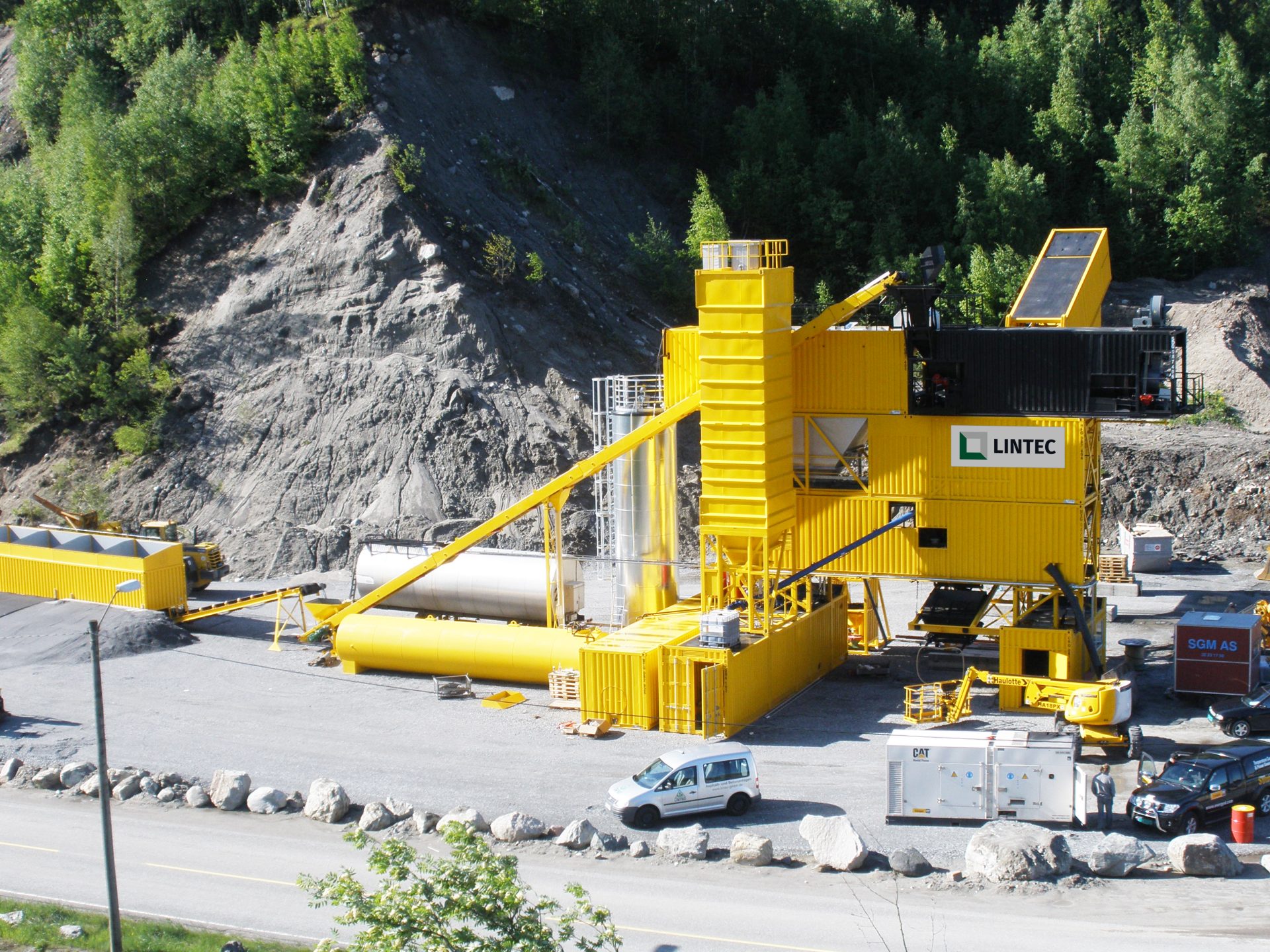

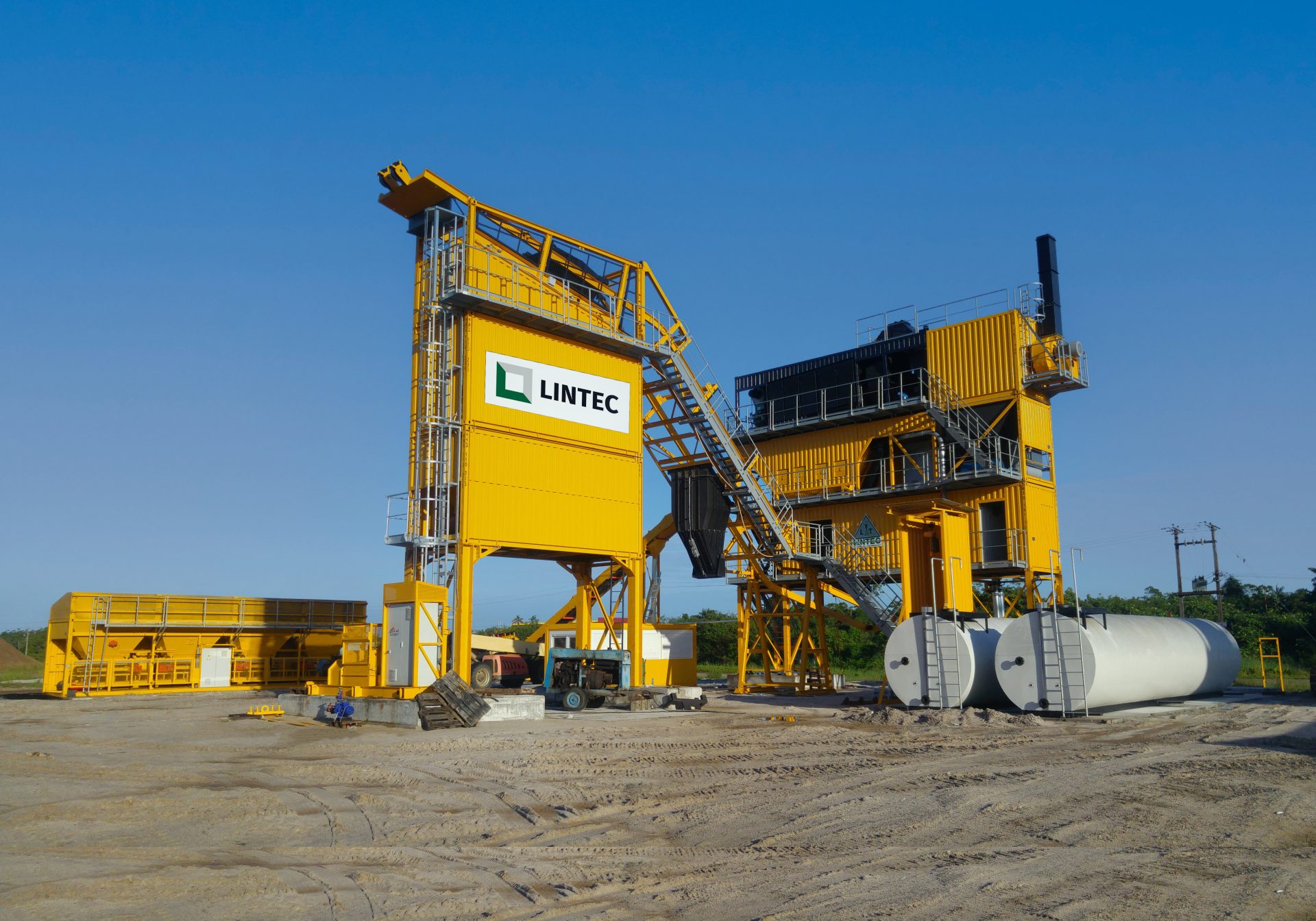

Built in ISO certified sea containers, our flagship Lintec containerised asphalt mixing plant is the first of its kind in the industry. The Lintec CSD asphalt mixing plant features a modular construction that allows for easy transportation and convenient installation, it's the ideal choice for both small and big project requirements.
Superior and unique energy-saving technology that brings you to the cutting edge of sustainability.
The rigid ground area ensures stability on suitably compacted soil, so concrete foundation is not required.
Save more energy with Lintec's Double Screen Drum Technology which combines heating and screening in a single process.
Embrace sustainability with a pollution control unit and optional recycling system.
Security is assured as the plant tower has access via one central lockable security.
All plants are pre-assembled with quality guaranteed from rigorous test cycles ensuring fast and smooth setup with low shipping costs.
| Model | CSD1510 | CSD2500B | CSD3000 |
|---|---|---|---|
| Capacity | 120 tph | 160 tph | 240 tph |
| Batch Size | 1350 kg | 1650/1600 kg | 2500 kg |
Specifications are subject to technical modifications.
Contact our team for a custom quote tailored to your specific requirements
